GMSH - Open Source Meshing Program

Visual Description of GMSH Tutorials

The purpose of this web-page is to summarize the capabilities of FreeCAD and GMSH by adding user experience while running the tutorial cases. The information is being updated gradually, starting with a visual description of the output from each tutorial. This will help a potential user of GMSH to directly jump to the tutorial which fits his/her requirements. Though it is imperative to go though all the tutorials the way the authors of this program have designed. The publisher of cfdyna.com has not made contribution to some of the example cases included here and asserts no claim or copyright. The purpose is to compile information in a place for reference to current and future users of GMSH program for learning purposes.

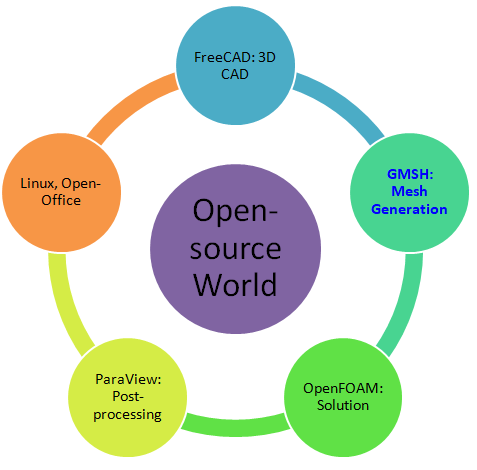

openSource World GMSH

While FreeCAD uses Python for scripting, GMSH calls its scripting language as 'affectation'. A new variable is defined as eSize = 1e-2; and a new point can be created as Point(1) = {0, 0, 0, eSize};

The recommended method to convert a GMSH mesh to OpenFOAM format is to use utility gmshToFoam. The syntax is gmshToFoam case.msh -case oFCase. As per thread on cfd-onine.com, gmshToFoam can convert only version 2 of Gmsh format. You MSH file is version 4. Use "-format msh2 -2" command line switch while generating MSH file. In the GUI: File->Export and pick the version in the dropdown menu. In a .geo script: add the line Mesh.MshFileVersion = x.y; for any version number x.y. This can be saved as default options. In the API: gmsh::option::setNumber("Mesh.MshFileVersion", x.y).

Another option is to use GMSH to generate surface mesh and export it to an STL format. Then use snappyHexMesh to generate the volume mesh. The advantage of this approach is that the physical entities (inlets, outlets...) defined in GMSH can get exported into STL and subsequently into sHM. Thus, topoSet and createPatch utilities may not be needed on final mesh.

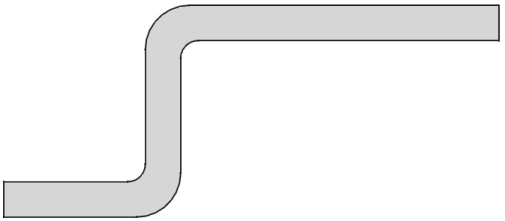

FreeCAD + GMSH: Z-Bend

How many of these names have you heard of? Click on the names to know more about them!

Open Source Companies
The FreeCAD file, STEP and STL geometry can be found here: Z-Bend FreeCAD, Z-Bend geometry in STEP format and Z-Bend STL Geometry. The STL geometry can be used in snappyHexMesh to generate a mesh for CFD simulation in OpenFOAM. The STEP/IGES format can be imported in GMSH using File -> Merge option. The mesh can be generated in GMSH after setting element size as depicted below. Progress information and messages are displayed in the bottom part of GUI in GMSH. If it is not visible, use Tools -> Message Console path or control-L command to activate / deactivate it.

Z-Bend FreeCAD and STL geometry

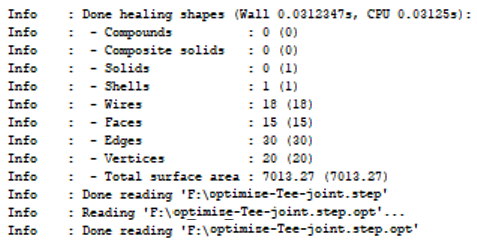

Once STEP geometry is imported in GMSH, following log message is printed in console. Note that no solid is defined. In addition to boundary patches such as inlet, outlet and walls, fluid zone also need to be defined. The option is to follow Geometry > Add > Volume > Select volume boundary (click on the surfaces that form a closed volume).

Step File Import in GMSH

In order to save an STEP geometry in native *.geo format, follow the utility File > Export... > Geometry - Gmsh Unrolled GEO. Add the extension .geo in the file name.

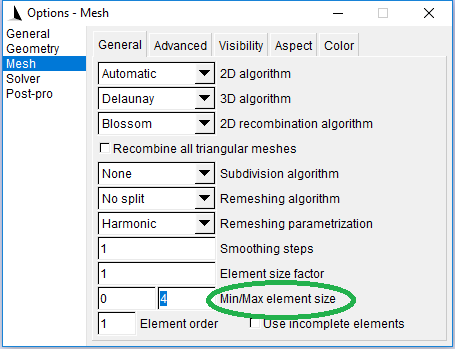

Element size setting in GMSH

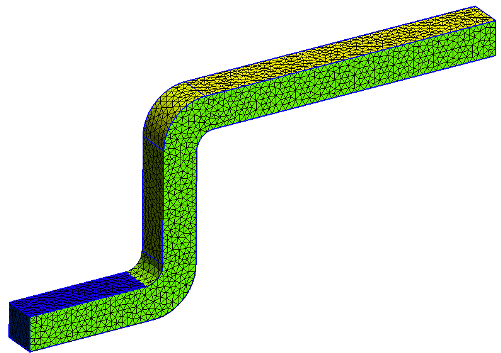

Z-Bend Mesh in GMSH

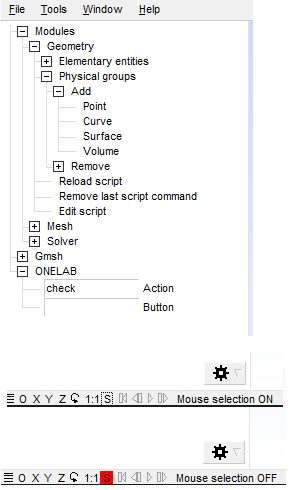

The selection of entities in GMSH using mouse key can be turned OFF and ON as shown below. This is required to set "Physics Group". In the graphical interface, select Geometry > Physical Groups > Add > Surface and then hover over each of the surfaces which are shown by the dashed gray lines. The numbering will be revealed in a box near mouse cursor for the nearest surface.

Mouse selection in GMSH


GMSH: Tutorial-01

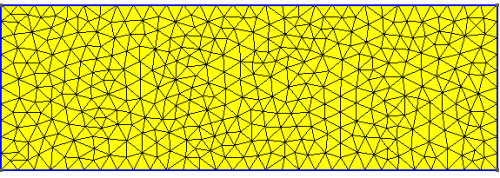

Description and features: The most basic functionality of GMSH capability to create points, lines, surface and physical entities (that is regions or zones). The domain is 2D and mesh generated is triangular which is default setting.

GMSH Tutorial 01

GMSH: Tutorial-02

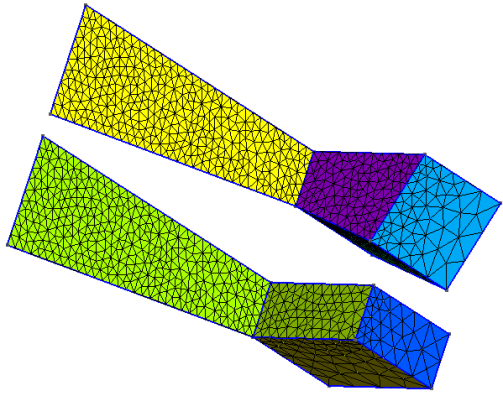

Description and features: This is an example of volume meshing with tetrahedrons. The surfaces bounding the volume are all planar.

GMSH Tutorial 02


GMSH: Tutorial-03

Description and features: Here the capability to generate hybrid mesh (hexahedron + tetrahedrons) along with 1:1 interface is explained. Creation of surface by extrusion with twisting is visible. The mesh has also been generated by extrude feature. This example also demonstrates application of including a *.geo file into another GMSH *.geo file.

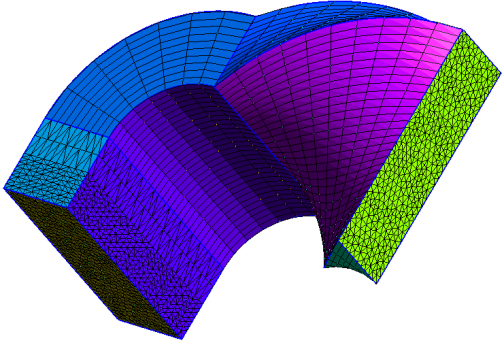

GMSH Tutorial 03

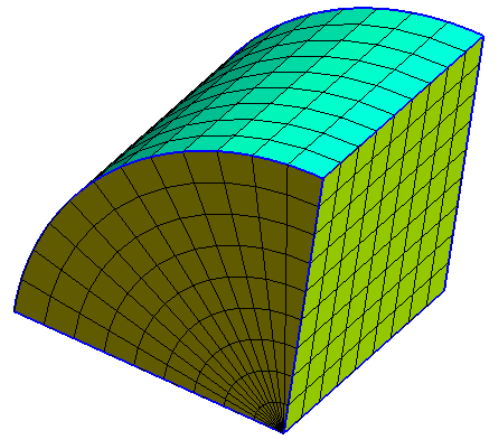

The functionality presented in this tutorial can be used to generate following two meshes with extrude feature. The main *.geo file can be downloaded from here. The section of the pipe is generated by this file.

GMSH quarterCylinder

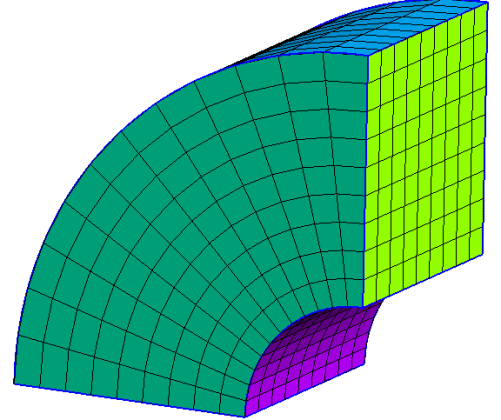

The main *.geo file can be downloaded from here. The section of the pipe is generated by this file.

GMSH elbow bend

Note the following:
  • When point is extruded, it results in a line and end-point on the other side of the line. The 'top' of extruded entity is a 'point'. The extruded entity is a 'line'. Thus: out[0] = 'top' node, out[1] = 'line'
  • Similarly, when a line is extruded, it results in a surface, 3 aditional lines bounding the new surface and 3 new nodes. out[0] = 'top' edge, out[1] = 'surface', out[3] = 'side' curve 1, out[4] = 'side' curve 2 ...

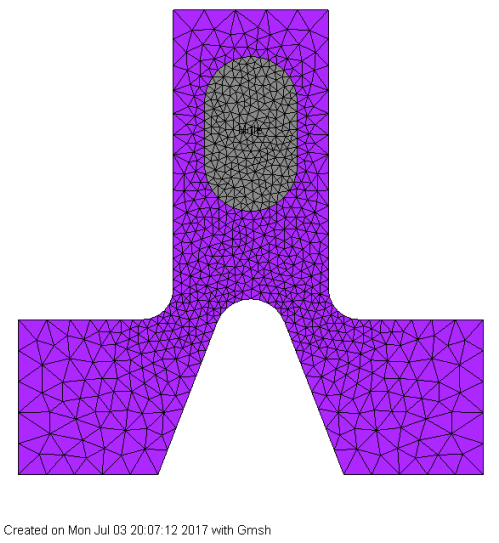

GMSH: Tutorial-04

Description and features: This tutorial explains usage of curve primitives other than straight lines such as arcs, splines, B-splines, circular and elliptical arcs ...

GMSH Tutorial 04


GMSH: Tutorial-05

Description and features: The usage of loop to create geometrical entities, arrays to store variables and application of user-defined macro is explained in this example.

GMSH Tutorial 05


GMSH: Tutorial-06

Description and features: The generation of structured mesh using transfinite interpolation is explained through this tutorials. Optinally, elliptical smoothing can be used to smoothen the grid but (like any smoothing operation) it may not necessarily improve the quality of the mesh.

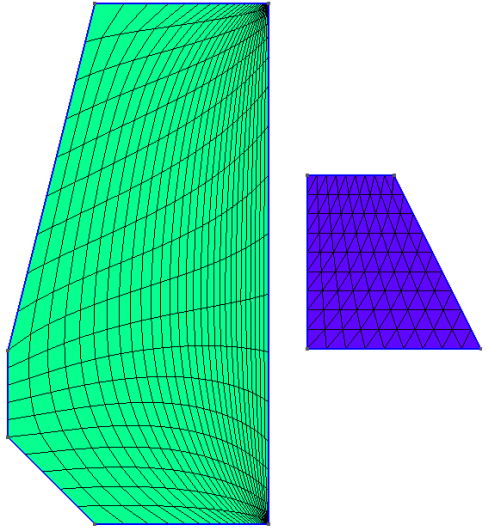

GMSH Tutorial 06

GMSH: Tutorial-07, 08, 09

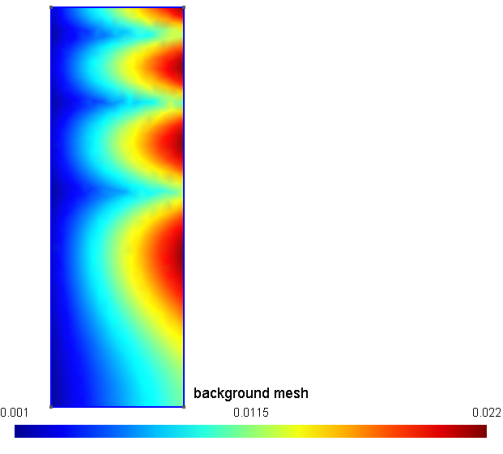

Description and features: The tutorials 7, 8 and 9 demonstrates post-processig capabilities of GMSH.

GMSH Tutorial 07

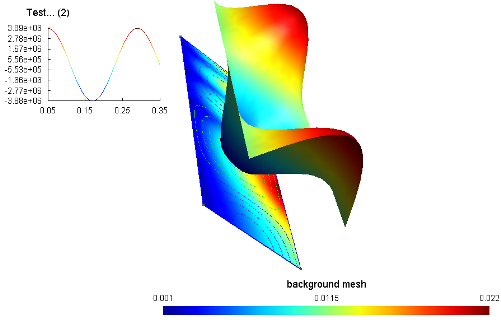

GMSH Tutorial 08

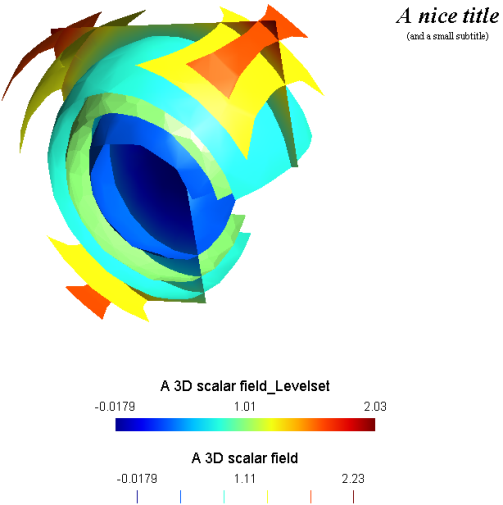

GMSH Tutorial 09

GMSH: Tutorial-10

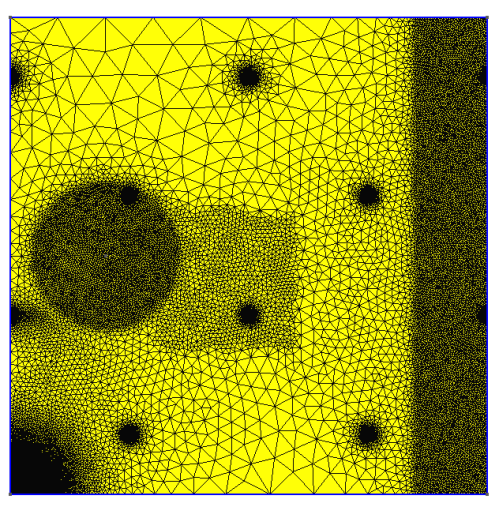

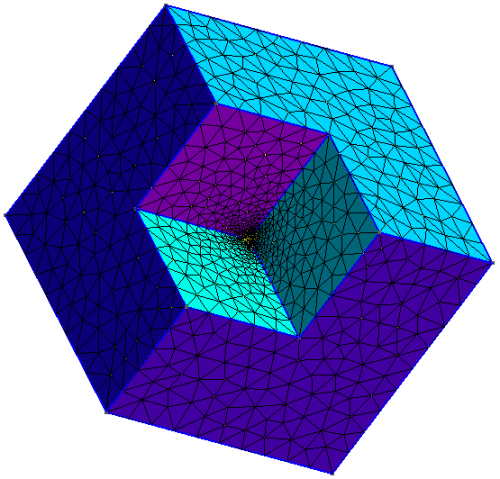

Description and features: This demonstration is to create mesh density points to have finer mesh in a local area. The example also explains how to modulate the mesh element sizes using a mathematical function with the MathEval field.

GMSH Tutorial 10


GMSH: Tutorial-11

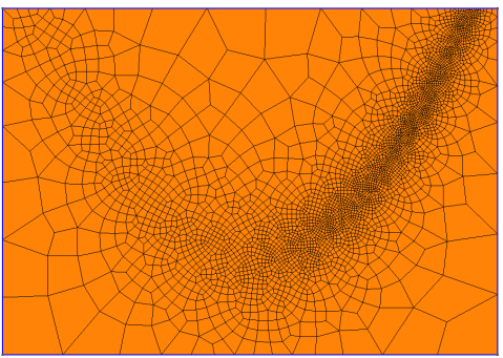

Description and features: As explained in tutorials 3 and 6, the extruded and transfinite meshes can be "recombined" into quads/prisms/hexahedra by using the "Recombine" keyword to generate structured mesh. This example explains method to create unstructured quad elements using same algorithm.

GMSH Tutorial 11

GMSH: Tutorial-12

Description and features: Excerpts - "Compound geometrical entities can be defined to compute a new parametrization of groups of elementary geometrical entities. This parametrization can then be used for remeshing the compound as if it were a single CAD entity."

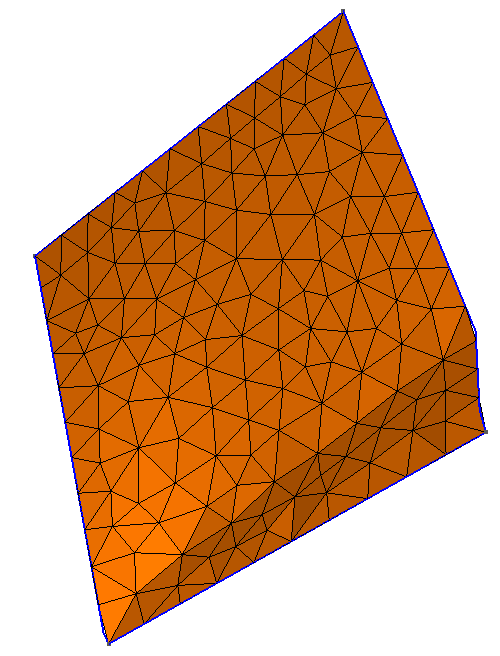

GMSH Tutorial 12


GMSH: Tutorial-13

Description and features: Import of geometry in STL format created in MCAD programs, re-meshing of the geometry (re-meshing as STL format is already a mesh data).

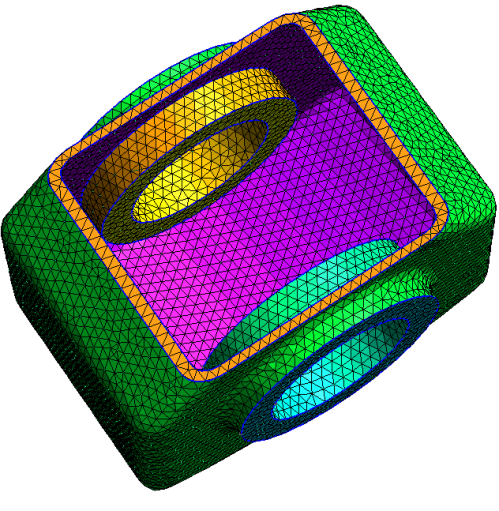

GMSH Tutorial 13

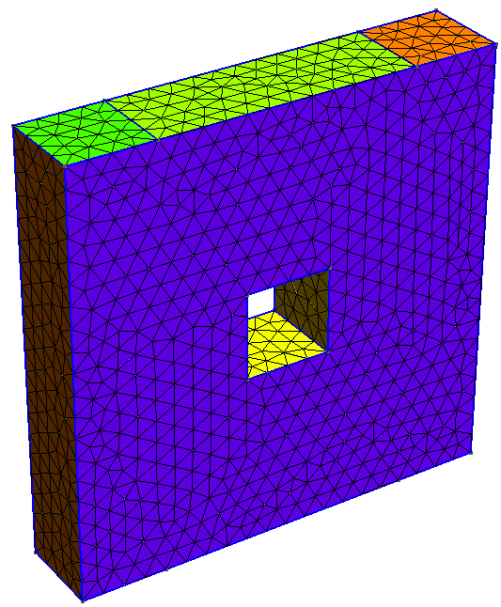

GMSH: Tutorial-14

Description and features: Excepts - "Homology computation in GMSH finds representative chains of (relative) (co)homology space bases using a mesh of a model. The representative basis chains are stored in the mesh as physical groups of Gmsh, one for each chain."

GMSH Tutorial 14

GMSH: Tutorial-15

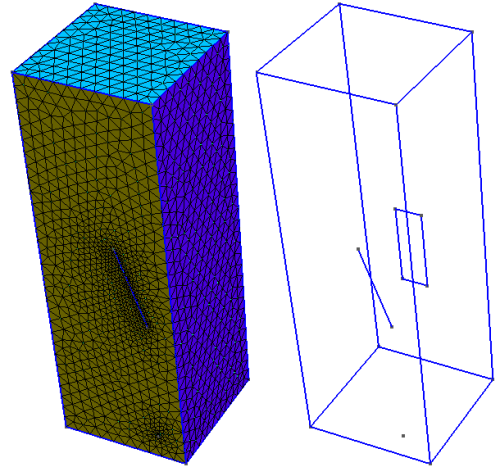

Description and features: Here is application of embedded points, lines and surfaces is explained. Geometrical entities are embedded to ensure mesh and node at/along these entities say to represent a baffle (line) or a (point for) heat source.

GMSH Tutorial 15



EXAMPLES FROM WWW

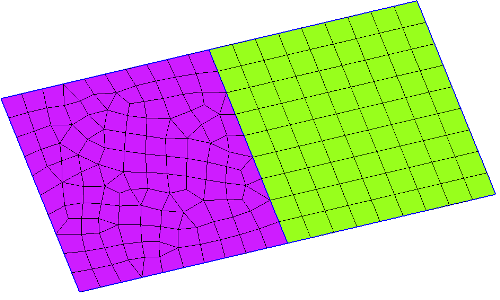

Unstructured and Structured Hybrid Meshes

The *.geo file can be downloaded from here. Note that GMSH can create structured mesh only on surfaces defined by 3 or 4 edges.

GMSH Unstructured and Structured Hybrid Meshes


Structured Mesh of a Converging-Diverging-Nozzle

The *.geo file can be downloaded from here.

GMSH Structured Mesh of a Solid Cuboid

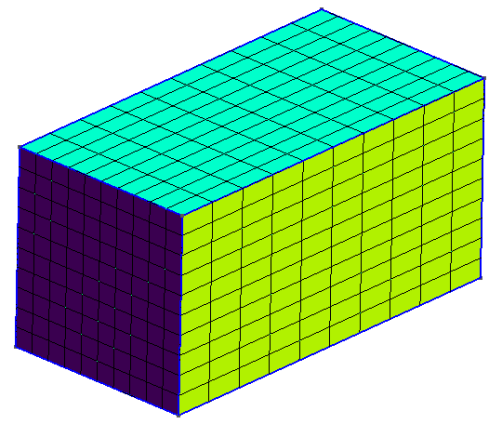

Structured Mesh of a Solid Cuboid

The *.geo file can be downloaded from here.

GMSH Structured Mesh of a Solid Cuboid

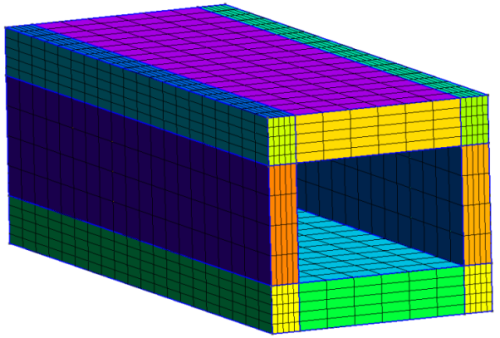

Structured Mesh of a Hollow Cuboid

Reference: Generation of structured meshes via extrusion in GMSH by Roman Putanowicz, Cracow Univeristy of Technology. The *.geo file can be downloaded from here.

GMSH Structured Mesh of a Hollow Cuboid

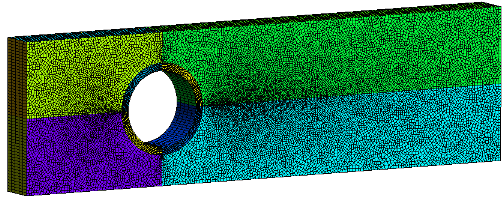

Cylinder in a Cross-flow

The *.geo file can be downloaded from here.

GMSH Cylinder in a Cross-flow

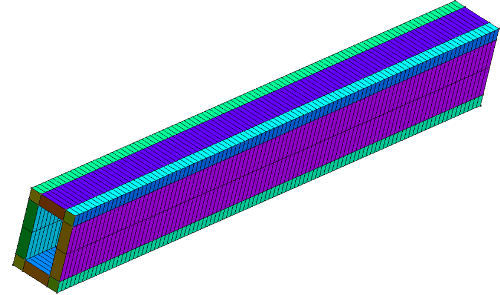

Structured Mesh of an Box Channel Beam

The extension of previous example is an box-channel beam which has application in structural simulations. The *.geo file can be downloaded from here.

GMSH Structured Mesh of an Box Channel Beam

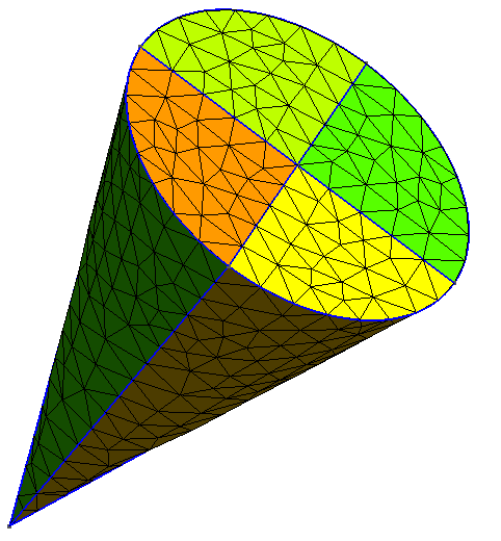

Unstructured Mesh of an Icecream Cone

The *.geo file can be downloaded from here.

Unstructured Mesh of an Icecream Cone

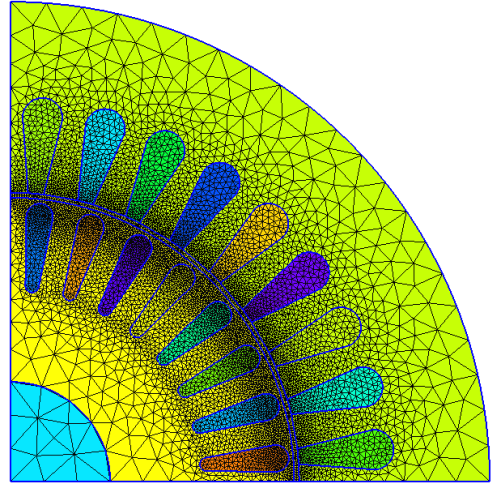

Unstructured Mesh of an 2D Rotor-Stator Geometry

The *.geo file can be downloaded from here.

Unstructured Mesh of an 2D Rotor-Stator Geometry


Hex Nut in a Cube

The *.geo file can be downloaded from here.

Hex Nut in a Cube

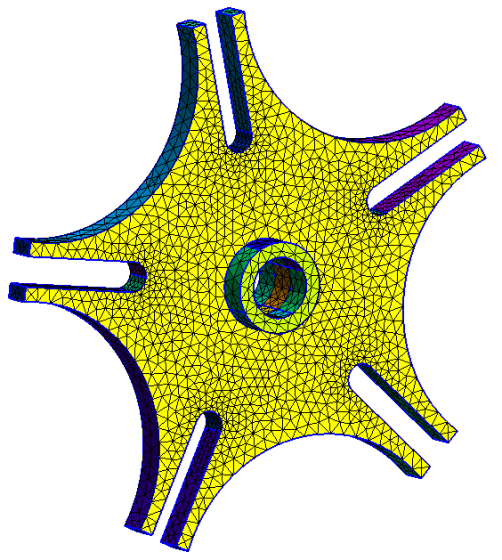

Unstructured Tetra Mesh of a Geneva Wheel

The *.geo file can be downloaded from here.

geneva Wheel

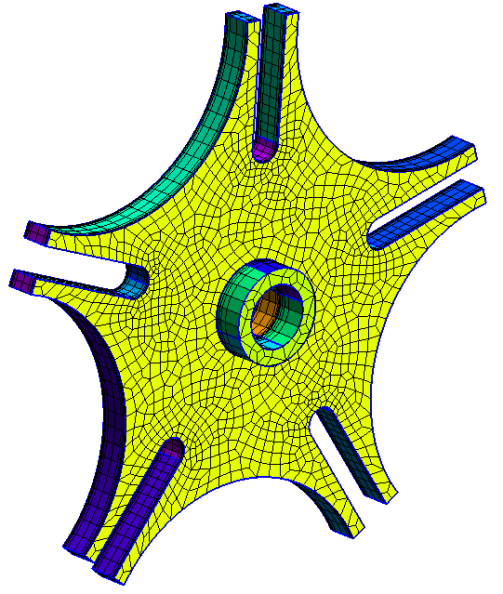

Unstructured Hexa Mesh of a Geneva Wheel

The *.geo file can be downloaded from here.

geneva Wheel hexa mesh

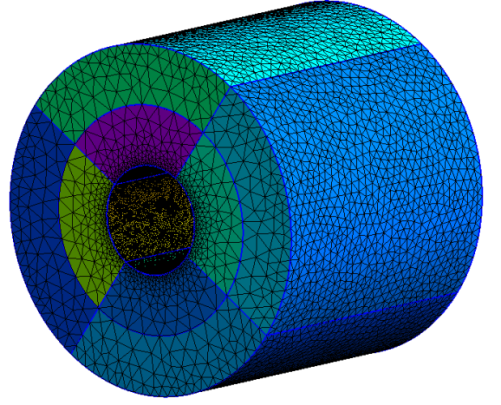

Unstructured Tetra Mesh of an Annular Duct

The *.geo file can be downloaded from here.

Annular Duct


Troubleshooting

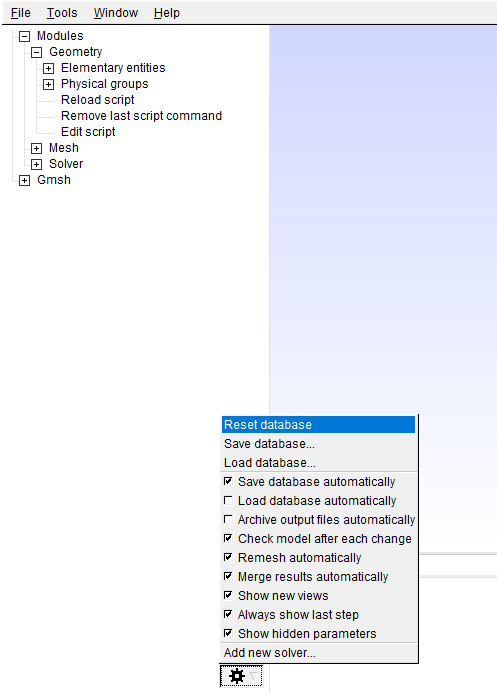

Sometimes the GMSH gives persistent error message during start-up. The best way is to clear some sort of cache using following option. This problem may appear when GMSH is forced shut-down when it became unresponsive due to some error in the *.geo file.

Reset Database in GMSH
